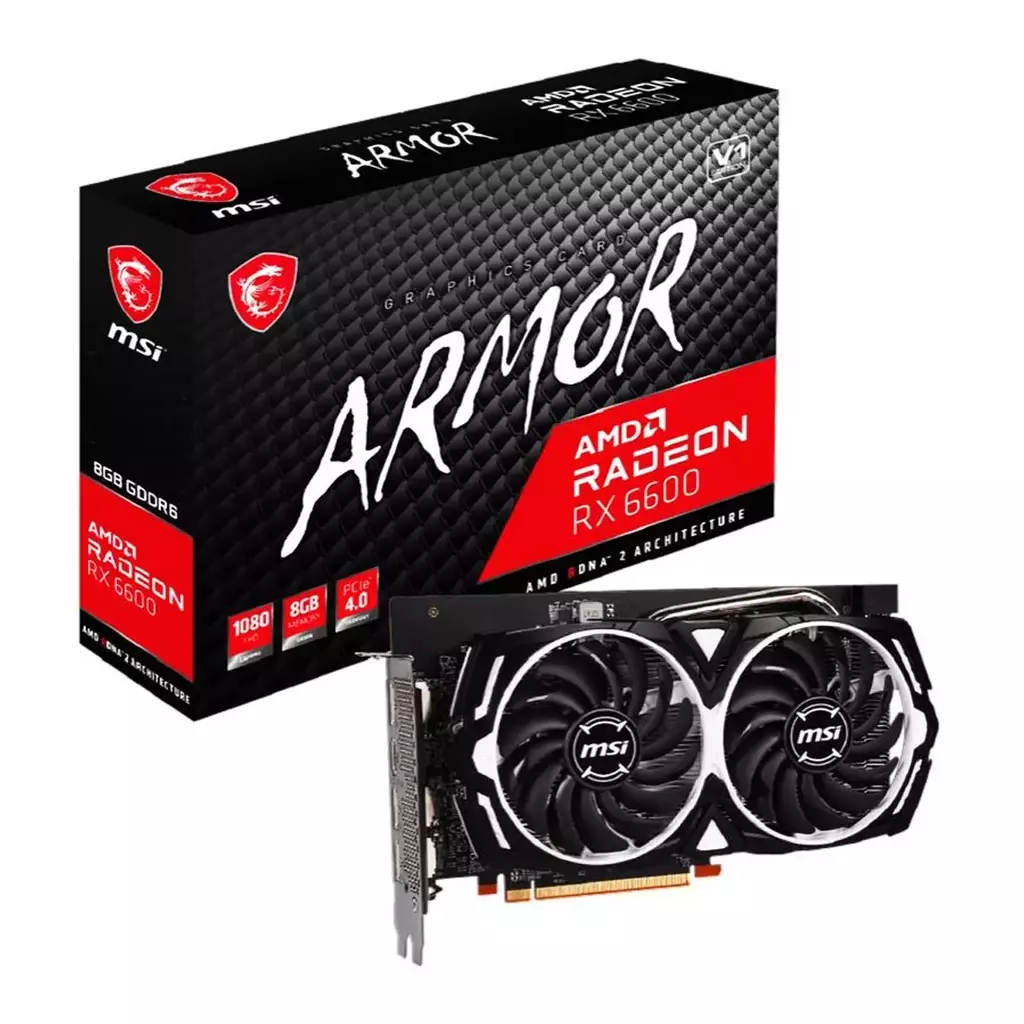

MODEL NAME Radeon™ RX 6600 ARMOR 8G V1

GRAPHICS PROCESSING UNIT AMD Radeon™ RX 6600

INTERFACE PCI Express® 4.0 x8

CORES 1792 Units

CORE CLOCKS Boost: Up to 2491 MHz / Game: Up to 2044 MHz

MEMORY SPEED 14 Gbps

MEMORY 8GB GDDR6

MEMORY BUS 128-bit

OUTPUT DisplayPort x 3 (v1.4) / HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1)

HDCP SUPPORT Yes

POWER CONSUMPTION 132 W

POWER CONNECTORS 8-pin x 1

RECOMMENDED PSU 500 W or greater

CARD DIMENSION (MM) 238 x 128 x 39 mm

WEIGHT (CARD / PACKAGE) 621 g / 1105 g

DIRECTX VERSION SUPPORT 12 API

OPENGL VERSION SUPPORT 4.6

MULTI-GPU TECHNOLOGY Yes

AFTERBURNER OC Yes

MAXIMUM DISPLAYS 4

VR READY Yes

DIGITAL MAXIMUM RESOLUTION 7680 x 4320
